Adjustable foot - Threaded square insert PVJ

Adjustable foot - Threaded square insert

bouchon-plastique.com | Frame Adjustable height on feet with plug - square.

PVJ

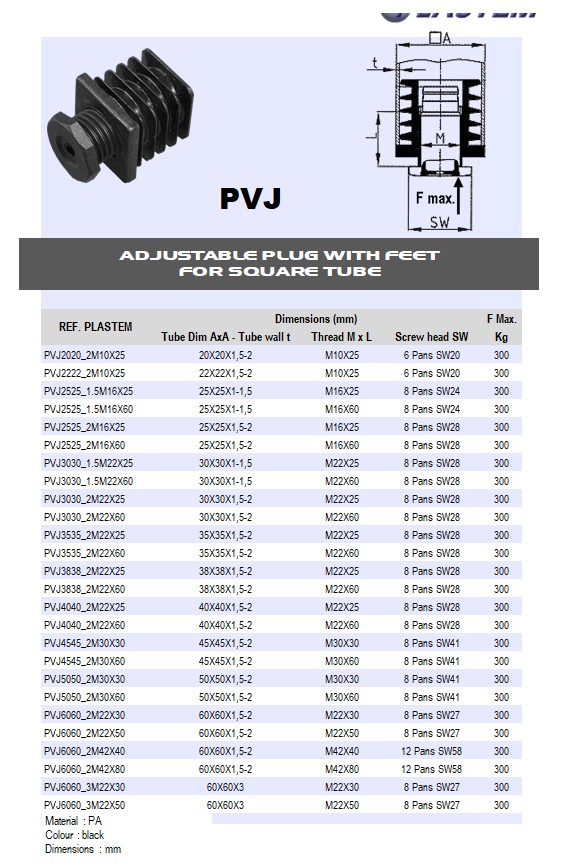

ADJUSTABLE FEET WITH PLUG - SQUARE
Material : PA
Colour : Black
Dimensions : mm
Adjustable height on feet with plug - square.
Dimension based on external dimension and thickness of the tube

Reference Details Sold by Price tax excl Details
PVJ2020_2M10X25 Adjustable feet tube OD 20x20 mm Wall 1,5-2 - Thread M10 Ht 25 mm Prix/pce - Price/pce 0.4182 Details
PVJ2222_2M10X25 Adjustable feet tube OD 22x22 mm Wall 1,5-2 - Thread M10 Ht 25 mm Prix/pce - Price/pce 0.4512 Details
PVJ2525_1.5M16X25 Adjustable feet tube OD 25x25 mm Wall 1-1,5 - Thread M16 Ht 25 mm Prix/pce - Price/pce 0.4817 Details
PVJ2525_1.5M16X60 Adjustable feet tube OD 25x25 mm Wall 1-1,5 - Thread M16 Ht 60 mm Prix/pce - Price/pce 0.5533 Details
PVJ2525_2M16X25 Adjustable feet tube OD 25x25 mm Wall 1,5-2 - Thread M16 Ht 25 mm Prix/pce - Price/pce 0.4817 Details
PVJ2525_2M16X60 Adjustable feet tube OD 25x25 mm Wall 1,5-2 - Thread M16 Ht 60 mm Prix/pce - Price/pce 0.5533 Details
PVJ3030_1.5M22X25 Adjustable feet tube OD 30x30 mm Wall 1-1,5 - Thread M22 Ht 25 mm Prix/pce - Price/pce 0.4263 Details
PVJ3030_1.5M22X60 Adjustable feet tube OD 30x30 mm Wall 1-1,5 - Thread M22 Ht 60 mm Prix/pce - Price/pce 0.6099 Details
PVJ3030_2M22X25 Adjustable feet tube OD 30x30 mm Wall 1,5-2 - Thread M22 Ht 25 mm Prix/pce - Price/pce 0.4341 Details
PVJ3030_2M22X60 Adjustable feet tube OD 30x30 mm Wall 1,5-2 - Thread M22 Ht 60 mm Prix/pce - Price/pce 0.5771 Details
PVJ3535_2M22X25 Adjustable feet tube OD 35x35 mm Wall 1,5-2 - Thread M22 Ht 25 mm Prix/pce - Price/pce 0.6226 Details
PVJ3535_2M22X60 Adjustable feet tube OD 35x35 mm Wall 1,5-2 - Thread M22 Ht 60 mm Prix/pce - Price/pce 0.7119 Details
PVJ3838_2M22X25 Adjustable feet tube OD 38x38 mm Wall 1,5-2 - Thread M22 Ht 25 mm Prix/pce - Price/pce 0.7484 Details
PVJ3838_2M22X60 Adjustable feet tube OD 38x38 mm Wall 1,5-2 - Thread M22 Ht 60 mm Prix/pce - Price/pce 0.8407 Details
PVJ4040_2M22X25 Adjustable feet tube OD 40x40 mm Wall 1,5-2 - Thread M22 Ht 25 mm Prix/pce - Price/pce 0.6964 Details
PVJ4040_2M22X60 Adjustable feet tube OD 40x40 mm Wall 1,5-2 - Thread M22 Ht 60 mm Prix/pce - Price/pce 0.8634 Details
PVJ4545_2M30X30 Adjustable feet tube OD 45x45 mm Wall 1,5-2 - Thread M30 Ht 30 mm Prix/pce - Price/pce 0.9100 Details
PVJ4545_2M30X60 Adjustable feet tube OD 45x45 mm Wall 1,5-2 - Thread M30 Ht 60 mm Prix/pce - Price/pce 0.8917 Details
PVJ5050_2M30X30 Adjustable feet tube OD 50x50 mm Wall 1,5-2 - Thread M30 Ht 30 mm Prix/pce - Price/pce 0.9350 Details
PVJ5050_2M30X60 Adjustable feet tube OD 50x50 mm Wall 1,5-2 - Thread M30 Ht 60 mm Prix/pce - Price/pce 0.9349 Details
