Adjustable foot - Threaded round insert PDR

Adjustable foot - Threaded round insert

bouchon-plastique.com | Frame Adjustable height on feet with plug - round.

PDR

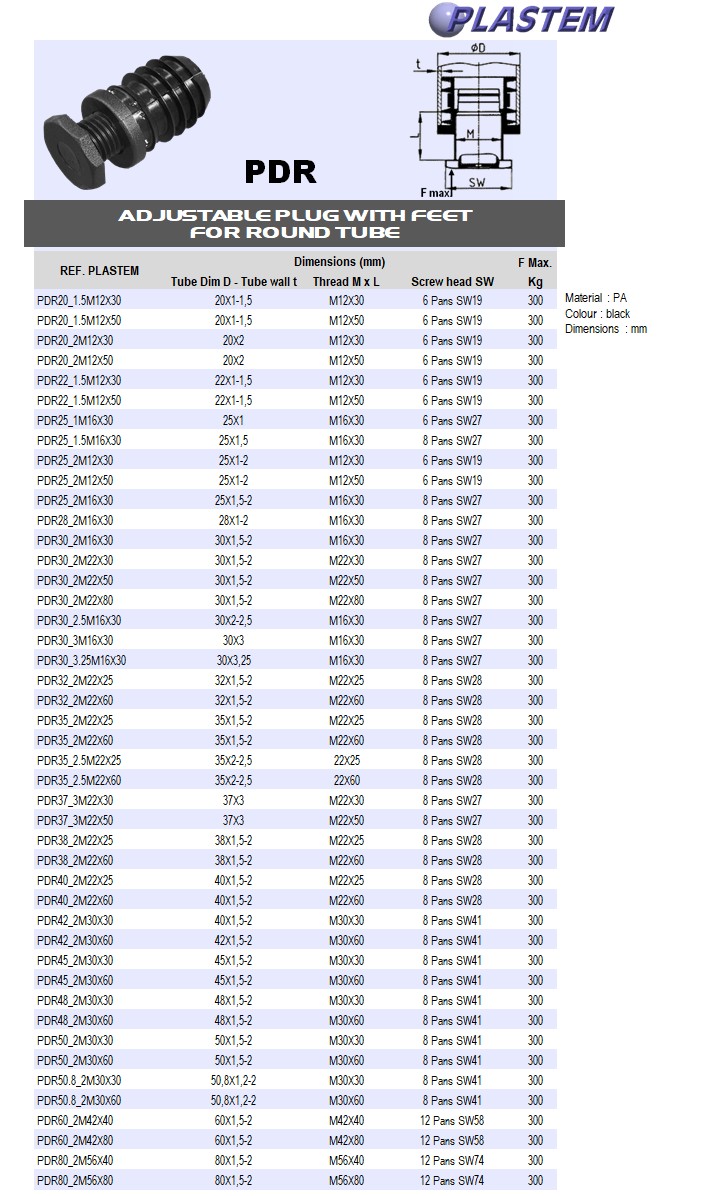

ADJUSTABLE FEET WITH PLUG - ROUND
Material : PA
Colour : Black
Dimensions : mm
Adjustable height on feet with plug - round.
Dimension based on external dimension and thickness of the tube

ReferenceDetailsSold byPrice tax exclDetails
PDR20_1.5M12X30Adjustable feet tube OD 20 mm Wall 1-1,5 - Thread M12 Ht 30 mmPrix/pce - Price/pce0.4340Details
PDR20_1.5M12X50Adjustable feet tube OD 20 mm Wall 1-1,5 - Thread M12 Ht 50 mmPrix/pce - Price/pce0.4817Details
PDR20_2M12X30Adjustable feet tube OD 20 mm Wall 2 - Thread M12 Ht 30 mmPrix/pce - Price/pce0.4341Details
PDR20_2M12X50Adjustable feet tube OD 20 mm Wall 2 - Thread M12 Ht 50 mmPrix/pce - Price/pce0.4817Details
PDR22_1.5M12X30Adjustable feet tube OD 22 mm Wall 1-1,5 - Thread M12 Ht 30 mmPrix/pce - Price/pce0.4976Details
PDR22_1.5M12X50Adjustable feet tube OD 22 mm Wall 1-1,5 - Thread M12 Ht 50 mmPrix/pce - Price/pce0.5771Details
PDR25_1.5M16X30Adjustable feet tube OD 25 mm Wall 1,5 - Thread M16 Ht 30 mmPrix/pce - Price/pce0.5644Details
PDR25_1M16X30Adjustable feet tube OD 25 mm Wall 1 - Thread M16 Ht 30 mmPrix/pce - Price/pce0.5644Details
PDR25_2M12X30Adjustable feet tube OD 25 mm Wall 1-2 - Thread M12 Ht 30 mmPrix/pce - Price/pce0.5771Details
PDR25_2M12X50Adjustable feet tube OD 25 mm Wall 1-2 - Thread M12 Ht 50 mmPrix/pce - Price/pce0.6453Details
PDR25_2M16X30Adjustable feet tube OD 25 mm Wall 1,5-2 - Thread M16 Ht 30 mmPrix/pce - Price/pce0.5644Details
PDR28_2M16X30Adjustable feet tube OD 28 mm Wall 1-2 - Thread M16 Ht 30 mmPrix/pce - Price/pce0.6964Details
PDR30_2.5M16X30Adjustable feet tube OD 30 mm Wall 2-2,5 - Thread M16 Ht 30 mmPrix/pce - Price/pce0.7122Details
PDR30_2M16X30Adjustable feet tube OD 30 mm Wall 1,5-2 - Thread M16 Ht 30 mmPrix/pce - Price/pce0.7134Details
PDR30_2M22X30Adjustable feet tube OD 30 mm Wall 1,5-2 - Thread M22 Ht 30 mmPrix/pce - Price/pce0.6112Details
PDR30_2M22X50Adjustable feet tube OD 30 mm Wall 1,5-2 - Thread M22 Ht 50 mmPrix/pce - Price/pce0.7362Details
PDR30_2M22X80Adjustable feet tube OD 30 mm Wall 1,5-2 - Thread M22 Ht 80 mmPrix/pce - Price/pce1.0500Details
PDR30_3.25M16X30Adjustable feet tube OD 30 mm Wall 3,25 - Thread M16 Ht 30 mmPrix/pce - Price/pce0.7122Details
PDR30_3M16X30Adjustable feet tube OD 30 mm Wall 3 - Thread M16 Ht 30 mmPrix/pce - Price/pce0.7122Details
PDR32_2M22X25Adjustable feet tube OD 32 mm Wall 1,5-2 - Thread M22 Ht 25 mmPrix/pce - Price/pce0.4985Details
