Diaphragm grommets - Soft PVC PFO

Diaphragm grommets - Soft PVC

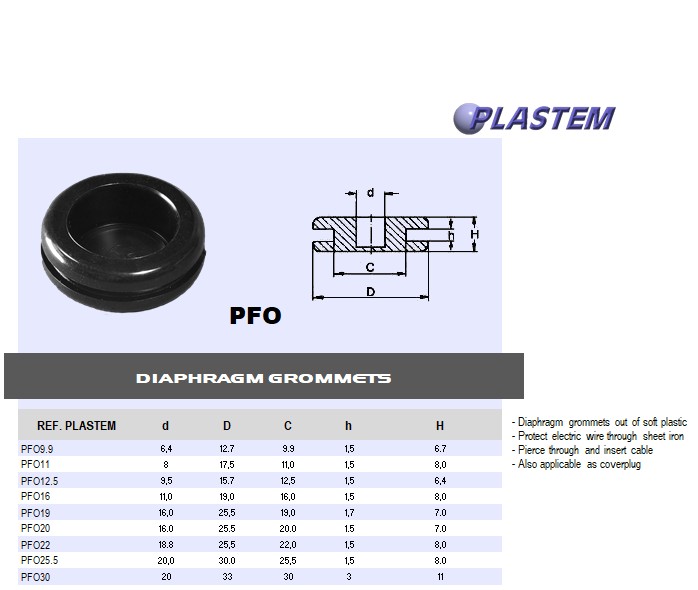

bouchon-plastique.com | Frame Diaphragm grommets made in soft PVC. Thin central film can be pierced to allow a range of different-sized wires to pass through

PFO
DIAPHRAGM GROMMETS
Material : Soft PVC
Colour : Black - Other colour on request
Dimensions : mm
Protect wires and cables passing through panels
Thin central film can be pierced to allow a range of different-sized wires to pass through

Reference Details Sold by Price tax excl Details
PFO11 Diaphragm grommet d:8 - D:17,5 - C:11 - h:1,5 - H:8 mm Black Prix/pce - Price/pce 0.4885 Details
PFO12.5 Diaphragm grommet d:9,5 - D:15.7 - C:12,5 - h:1,5 - H:6,4 mm Black Prix/pce - Price/pce 0.5373 Details
PFO16 Diaphragm grommet d:11 - D:19 - C:16 - h:1,5 - H:8 mm Black Prix/pce - Price/pce 0.6883 Details
PFO19 Diaphragm grommet d:16 - D:25,5 - C:19 - h:1,7 - H:7 mm Black Prix/pce - Price/pce 0.6883 Details
PFO20 Diaphragm grommet d:16 - D:25.5 - C:20 - h:1.5 - H:7 mm Black Prix/pce - Price/pce 0.6883 Details
PFO22 Diaphragm grommet d:18.8 - D:25,5 - C:22 - h:1,5 - H:8 mm Black Prix/pce - Price/pce 0.7072 Details
PFO25.5 Diaphragm grommet d:20 - D:30 - C:25,5 - h:1,5 - H:8 mm Black Prix/pce - Price/pce 0.8060 Details
PFO30 Diaphragm grommet d:20 - D:33 - C:30 - h:3 - H:11 mm Black Prix/pce - Price/pce 0.4077 Details
PFO9.9 Diaphragm grommet d:6,4 - D:12.7 - C:9.9 - h:1,5 - H:6.7 mm Black Prix/pce - Price/pce 0.5707 Details
