Round tube insert - Metal thread RO_M

Round tube insert - Metal thread

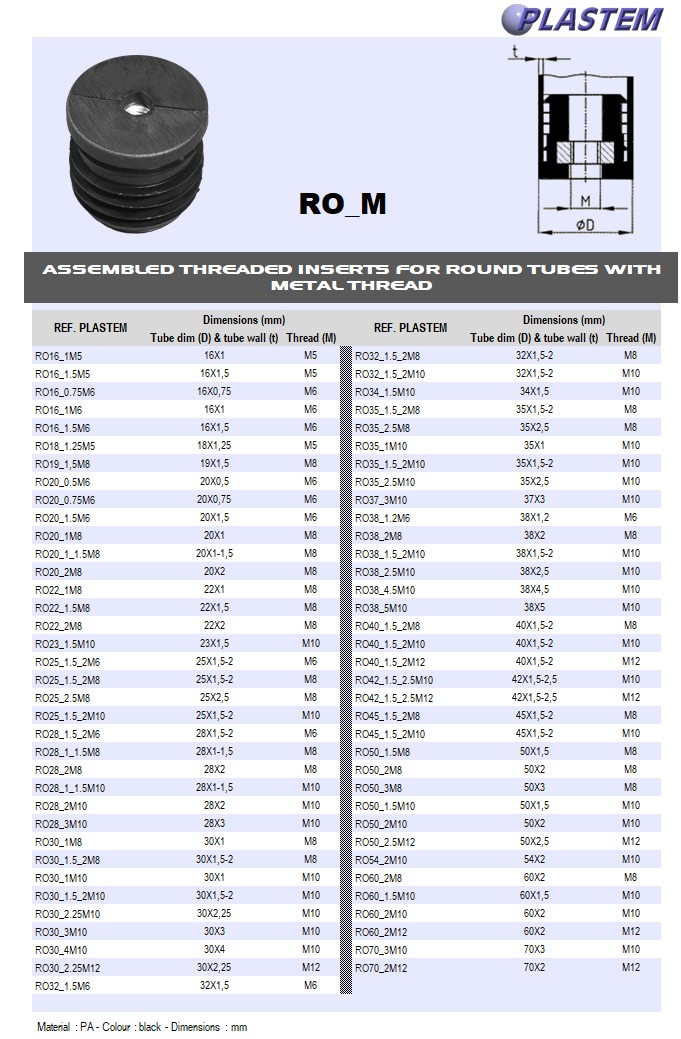

bouchon-plastique.com | Frame RO_M is an assembled plastic threaded inserts with metal thread on round tube for adjustable feet.

RO_M
PLASTIC INSERTS WITH METAL THREAD
Material : PA
Colour : Black
Dimensions : mm
RO_M is an assembled plastic threaded inserts with metal thread on round tube for adjustable feet.
Dimension based on external dimension and thickness of the tube

Reference Details Sold by Price tax excl Details
RO16_0.75M6 Round black inserts tube OD 16 mm Wall 0.75 - Metal thread M6 Prix/pce - Price/pce 0.3671 Details
RO16_1.5M5 Round black inserts tube OD 16 mm Wall 1.5 - Metal thread M5 Prix/pce - Price/pce 0.4250 Details
RO16_1.5M6 Round black inserts tube OD 16 mm Wall 1.5 - Metal thread M6 Prix/pce - Price/pce 0.4013 Details
RO16_1M5 Round black inserts tube OD 16 mm Wall 1 - Metal thread M5 Prix/pce - Price/pce 0.3505 Details
RO16_1M6 Round black inserts tube OD 16 mm Wall 1 - Metal thread M6 Prix/pce - Price/pce 0.3671 Details
RO18_1.25M5 Round black inserts tube OD 18 mm Wall 1.25 - Metal thread M5 Prix/pce - Price/pce 0.4013 Details
RO19_1.5M8 Round black inserts tube OD 19 mm Wall 1.5 - Metal thread M8 Prix/pce - Price/pce 0.4300 Details
RO20_0.5M6 Round black inserts tube OD 20 mm Wall 0.5 - Metal thread M6 Prix/pce - Price/pce 0.4013 Details
RO20_0.75M6 Round black inserts tube OD 20 mm Wall 0.75 - Metal thread M6 Prix/pce - Price/pce 0.4400 Details
RO20_1.5M6 Round black inserts tube OD 20 mm Wall 1.5 - Metal thread M6 Prix/pce - Price/pce 0.3914 Details
RO20_1M8 Round black inserts tube OD 20 mm Wall 1 - Metal thread M8 Prix/pce - Price/pce 0.4156 Details
RO20_1_1.5M8 Round black inserts tube OD 20 mm Wall 1-1.5 - Metal thread M8 Prix/pce - Price/pce 0.4401 Details
RO20_2M8 Round black inserts tube OD 20 mm Wall 2 - Metal thread M8 Prix/pce - Price/pce 0.4306 Details
RO22_1.5M8 Round black inserts tube OD 22 mm Wall 1.5 - Metal thread M8 Prix/pce - Price/pce 0.4643 Details
RO22_1M8 Round black inserts tube OD 22 mm Wall 1 - Metal thread M8 Prix/pce - Price/pce 0.4643 Details
RO22_2M8 Round black inserts tube OD 22 mm Wall 2 - Metal thread M8 Prix/pce - Price/pce 0.4886 Details
RO23_1.5M10 Round black inserts tube OD 23 mm Wall 1.5 - Metal thread M10 Prix/pce - Price/pce 0.6343 Details
RO25_1.5_2M10 Round black inserts tube OD 25 mm Wall 1.5-2 - Metal thread M10 Prix/pce - Price/pce 0.5614 Details
RO25_1.5_2M6 Round black inserts tube OD 25 mm Wall 1.5-2 - Metal thread M6 Prix/pce - Price/pce 0.5857 Details
RO25_1.5_2M8 Round black inserts tube OD 25 mm Wall 1.5-2 - Metal thread M8 Prix/pce - Price/pce 0.5736 Details
